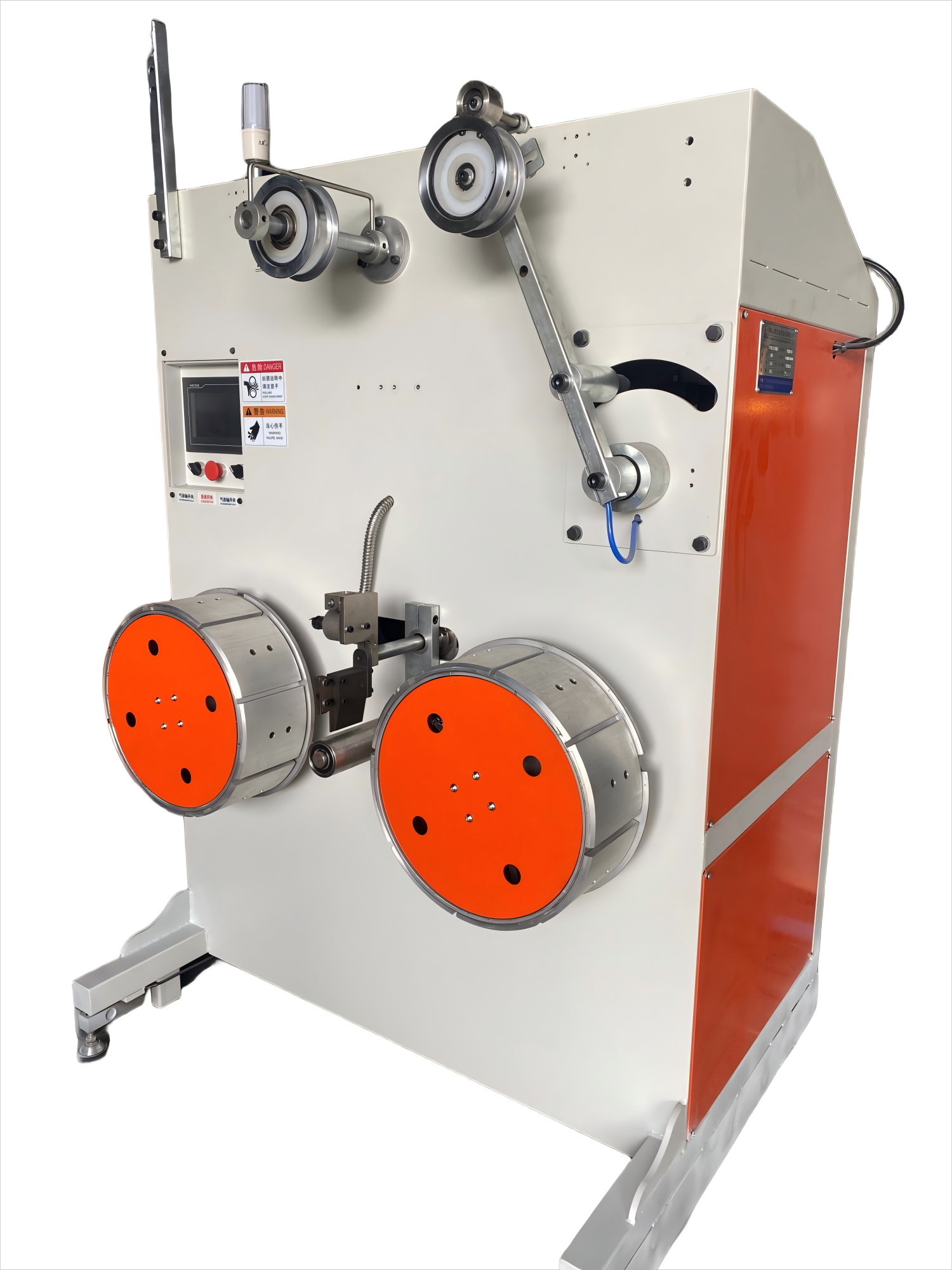

380V Toroidal Transformer Automatic Winding System High Efficiency Robust for Industrial
Product Description:
The 380V Toroidal Transformer Automatic Winding System is a high-efficiency, robust industrial solution designed for the precise and consistent winding of toroidal transformers. Engineered for continuous operation in demanding environments, this system ensures accurate coil formation, minimal material waste, and reliable output--making it ideal for electric power equipment, audio systems, and high-frequency devices.
Advanced Winding Technology: Powered by a 380V industrial-grade motor, the system delivers stable torque and high-speed performance for a wide range of toroidal core sizes. The integration of a PLC (Programmable Logic Controller) and servo motor drive allows for full automation of wire feeding, pitch control, turn count, and speed adjustments. This precision ensures uniform winding layers that meet the strictest quality standards for transformer performance.
The machine's heavy-duty steel frame and low-vibration design make it suitable for 24/7 industrial use. Whether for copper or aluminum wires, this system maintains smooth and tangle-free feeding during high-speed operation, reducing downtime and boosting efficiency.
Main specifications and parameters
| Appearance and dimensions | 1320mm*1100mm*1700mm | Maximum winding diameter | 800MM |
| Machine weight | About 600KG | Rewind-up range | 8MM-32MM |
| Input power | 380V | Length of paper tube | ≤200MM |
| Maximum power | 3KW | Equipment model | PETSA-SS |
| Maximum operating pressure of the system | 0.8MPa | Minimum operating pressure of the system | 0.6MPa |
